STRUCTURE-LINE

AC MOTION TWO White

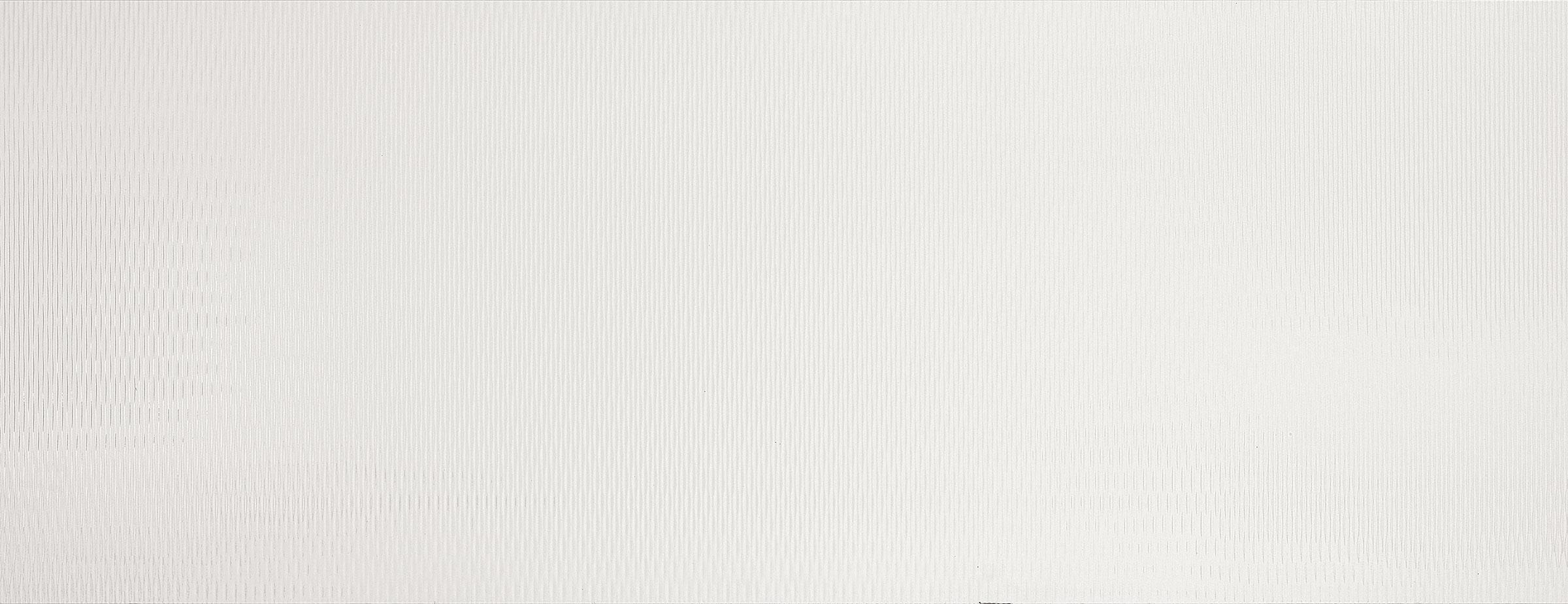

Detail of a white high gloss textured surface in wave structure

STRUCTURE-LINE

More structure for furniture and walls: harmonious colours and unique designs of our STRUCTURE-LINE make every surface an eye-catcher and unleash threedimensional effects. Whether rattan, wood or concrete look - these design panels provide a special kind of visual and haptic experience.
Detail of a white high gloss textured surface in wave structure

Product characteristics
AC MOTION TWO White

Color variants

Detail of a white high gloss textured surface in wave structure

AC MOTION TWO White

Panel photo

Product characteristics

Product characteristic

non adhesive (NA)

self adhesive (SA)

Item number

15755

15764

Format

2600x1000x1,1 mm

2600x1000x1,23 mm

Surface material

PMMA

PMMA

Base material

ABS

ABS

Back side material

Adhesive Layer

Material thickness mm

0,7 mm

0,83 mm

Max. relief height in mm

1,1 mm

1,23 mm

Temperature stability in °C

up to 50 °C

up to 50 °C

Wet room suitability

Abrasion Resistance

Rolled packable

Smallest bending radius

150 mm

150 mm

Weight in kg / piece

2,2

2,8

Pattern Gradient

Please consider the design course

Please consider the design course

Flammability

UL Standard 94

UL Standard 94

Machine-related dimensional and angle tolerances

+/- 1.0 mm in relation to 1,000 mm

+/- 1.0 mm in relation to 1,000 mm

Temperature-related dimensional deviations

+/- 0.7mm to 1,000 mm at temperatur change of 10°C

+/- 0.7mm to 1,000 mm at temperatur change of 10°C

Protection foil

GTIN-Code

9002582157555

9002582157647

Customs tariff number

39203000

39199080

Processing

Processing

non adhesive (NA)

self adhesive (SA)

Cutting

Punching

Drilling

Sawing

Milling

Laser cutting

Hot bending

PVA compressible

Digital printing

Screen printing

Not possible

Not possible

Extra equipment

Extra equipment

non adhesive (NA)

self adhesive (SA)

Special formats

Maximum length

2690 mm

2690 mm

Maximum width

1220 mm

1220 mm

Further thicknesses

Cuttings

Magnetic available

PVA treatment orderable

Special colors

On request

On request

Further variants

EN13501-1 Flammability orderable

ASTM E84 Flammability orderable

Accessories

Accessories

non adhesive (NA)

self adhesive (SA)

Glue recommendation

SIBUKLE Spatula A2

not necessary

Matching Edges

Matching Profiles

Balance Sheet

HIPS white grained (Itemno.25877) 2610x1010 mm

not necessary

Cleaning

Do not use abrasive cleaners, solvent cleaners or pure alcohol! In case of light dirt by means of soft cleaning cloth (it should be free of dust and free of dirt). In case of heavy dirt by means of standard plastic or window cleaner (spray cleaners not onto the material surface, but sparingly onto the cleaning cloth).

Detail of a white high gloss textured surface in wave structure

Processing guidelines
Please refer to the technical tables to see whether the respective processing is possible.

The interactive table is only available on the desktop. Please view this page on a desktop PC.

Product group

Base Material

Variation

Expansion joint

Processing

STRUCTURE-LINE (SL)

absorbent
plasterboard, smoothed brickwork, raw MDF or chipboard etc.

NA
non-adhesive design sheet

Yes

SIBUKLE
putty adhesive

No

PVA Glue Pressing
PVA pre-treatment is necessary. Balancing sheet and PVA pre-treatment are avaliable at SIBU or roughering by means of sandpaper

non-absorbent
Glass, coated MDF, etc.

SA
self-adhesive design sheet
