DECO-LINE Display

DM OPTICAL MIRROR Brass AR

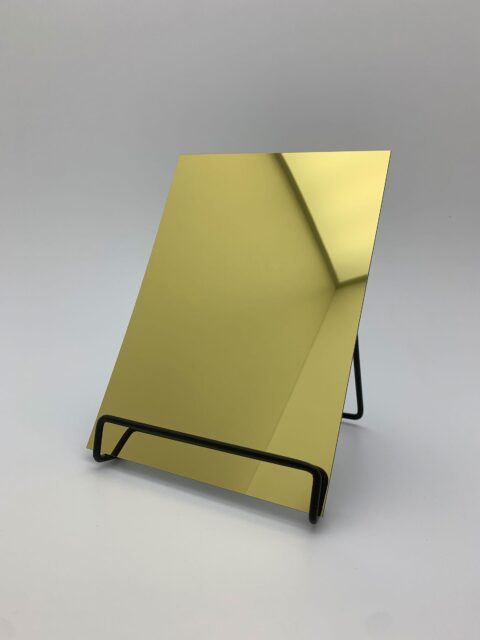

Detail view shiny golden decor

DECO-LINE Display

The DECO-LINE DISPLAY product programme includes polychrome surfaces, brilliant mirrors and brushed designs in a wide range of colours. Particularly suitable for display and shop windows.
Detail view shiny golden decor

Product characteristics
DM OPTICAL MIRROR Brass AR

Product characteristics

Product characteristic

non adhesive (NA)

Item number

21242

Format

2800x1250x1 mm

Surface material

PET

Base material

HIPS

Material thickness mm

1 mm

Max. relief height in mm

1 mm

Temperature stability in °C

up to 50 °C

Wet room suitability

Abrasion Resistance

Rolled packable

Smallest bending radius

150 mm

Weight in kg / piece

3,65

Pattern Gradient

No design course

Flammability

DIN 4102 - B2

Machine-related dimensional and angle tolerances

+/- 1.0 mm in relation to 1,000 mm

Temperature-related dimensional deviations

+/- 0.7mm to 1,000 mm at temperatur change of 10°C

Protection foil

GTIN-Code

9002582212421

Customs tariff number

39219090

Processing

Processing

non adhesive (NA)

Cutting

Punching

Drilling

Sawing

Milling

Laser cutting

Hot bending

Thermoforming

PVA compressible

Digital printing

Screen printing

Extra equipment

Extra equipment

non adhesive (NA)

Special formats

On request

Maximum length

3000 mm

Further thicknesses

Cuttings

Magnetic available

PVA treatment orderable

Special colors

Further variants

EN13501-1 Flammability orderable

ASTM E84 Flammability orderable

Accessories

Accessories

non adhesive (NA)

Glue recommendation

no recommendation

Matching Edges

Matching Profiles

Balance Sheet

HIPS white grained (Itemno. 25878) 2800x1250 mm

Cleaning

Do not use abrasive cleaners, solvent cleaners or pure alcohol! In case of light dirt by means of soft cleaning cloth (it should be free of dust and free of dirt). In case of heavy dirt by means of standard plastic or window cleaner (spray cleaners not onto the material surface, but sparingly onto the cleaning cloth).

Detail view shiny golden decor

Processing guidelines
Please refer to the technical tables to see whether the respective processing is possible.

The interactive table is only available on the desktop. Please view this page on a desktop PC.

Product group

Base Material

Variation

Expansion joint

Processing

DECO-LINE Display (DM)

absorbent
plasterboard, smoothed brickwork, raw MDF or chipboard etc.

NA
non-adhesive design sheet

Yes

SIBUKLE
putty adhesive

No

PVA Glue Pressing
PVA pre-treatment is necessary. Balancing sheet and PVA pre-treatment are avaliable at SIBU or roughering by means of sandpaper

non-absorbent
Glass, coated MDF, etc.

SA
self-adhesive design sheet
