FABRIC-LINE

FL LAVA VELVET Volcano

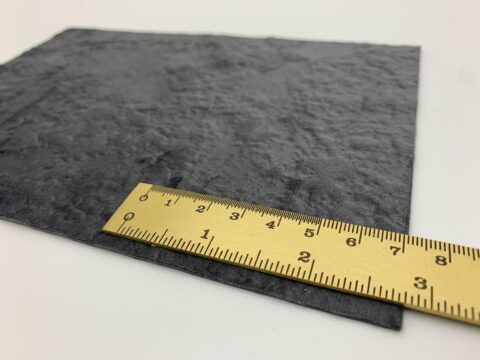

Detail view textured velvet surface in gray lava look

FABRIC-LINE

The FABRIC-LINE - smart and contemporary - offers a diverse range of different textiles. The interplay of the haptic properties, structures and colours creates a unique multi-sensory experience.
Detail view textured velvet surface in gray lava look

Product characteristics
FL LAVA VELVET Volcano

Colour variants

Detail view textured velvet surface in gray lava look

FL LAVA VELVET Volcano

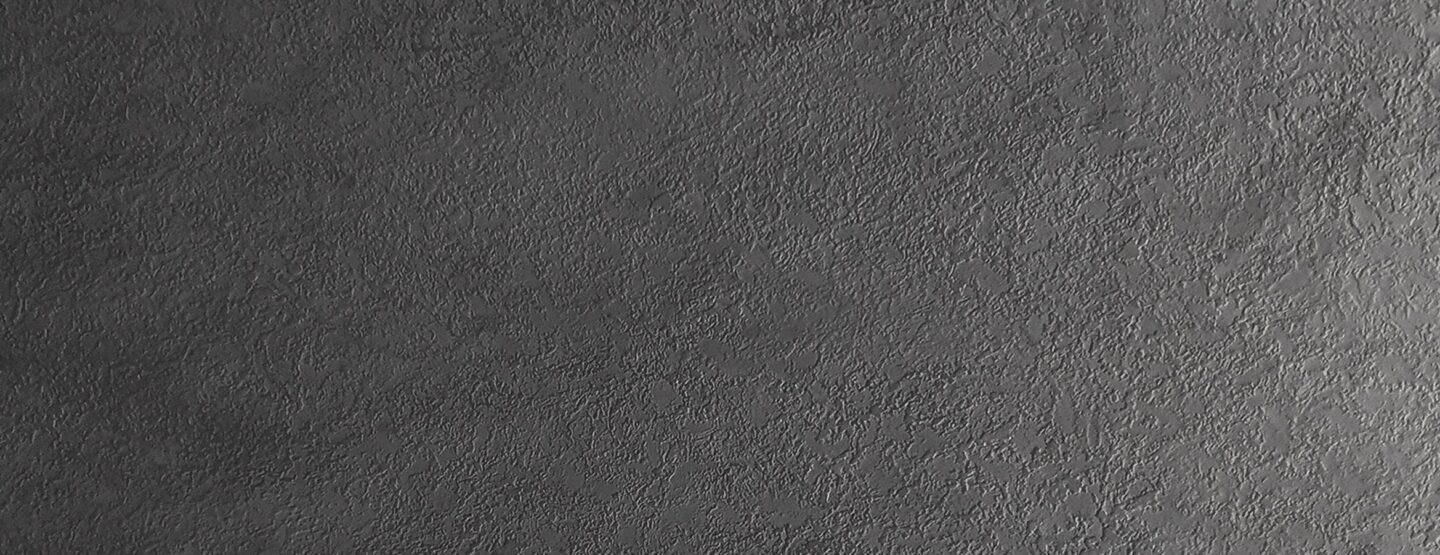

Panel photo

Product characteristics

Product characteristic

non adhesive (NA)

self adhesive (SA)

Item number

22707

22718

Format

2600x1000x2,2 mm

2600x1000x2,44 mm

Surface material

PET-Fibre

PET-Fibre

Base material

HIPS

HIPS

Back side material

Adhesive Layer

Material thickness mm

1,7 mm

1,94 mm

Max. relief height in mm

2,2 mm

2,44 mm

Temperature stability in °C

up to 50 °C

up to 50 °C

Wet room suitability

Rolled packable

Smallest bending radius

150 mm

150 mm

Weight in kg / piece

3,6

4,2

Pattern Gradient

Please consider the design course

Please consider the design course

Flammability

DIN 4102 - B2

DIN 4102 - B2

Machine-related dimensional and angle tolerances

+/- 2.0 mm in relation to 1,000 mm

+/- 2.0 mm in relation to 1,000 mm

Temperature-related dimensional deviations

+/- 0.7mm to 1,000 mm at temperatur change of 10°C

+/- 0.7mm to 1,000 mm at temperatur change of 10°C

Protection foil

GTIN-Code

9002582227074

9002582227180

Customs tariff number

39219060

39199080

Processing

Processing

non adhesive (NA)

self adhesive (SA)

Cutting

Punching

Drilling

Sawing

Milling

Laser cutting

Hot bending

PVA compressible

Extra equipment

Extra equipment

non adhesive (NA)

self adhesive (SA)

Special formats

Further thicknesses

Cuttings

Magnetic available

PVA treatment orderable

Special colors

On request

On request

Further variants

ANTIGRAV

EN13501-1 Flammability orderable

ASTM E84 Flammability orderable

Accessories

Accessories

non adhesive (NA)

self adhesive (SA)

Glue recommendation

Putty adhesive with tooth spatule A2

not necessary

Matching Edges

Matching Profiles

Balance Sheet

HIPS white grained (Itemno.25877) 2610x1010 mm

not necessary

Cleaning

Do not use abrasive cleaners, solvent cleaners or pure alcohol! Stains caused by oil, greases and ink must be removed immediately. Vacuum the surface in case of low pollution; in case of heavy pollution, dab the stain with an absorbent cloth, then wipe it off with mild soapy water.

Additional Info

Color variations are possible due to the manufacturing process and are no reason for complaint. Please consider the nap direction of the surface before further processing or product installation. If design panels are not installed in the same direction, there will be a visual color difference.

Detail view textured velvet surface in gray lava look

Processing guidelines
Please refer to the technical tables to see whether the respective processing is possible.

The interactive table is only available on the desktop. Please view this page on a desktop PC.

Product group

Base Material

Variation

Expansion joint

Processing

FABRIC-LINE (FL)

absorbent
plasterboard, smoothed brickwork, raw MDF or chipboard etc.

NA
non-adhesive design sheet

No

PVA Glue Pressing
PVA pre-treatment is necessary. Balancing sheet and PVA pre-treatment are avaliable at SIBU or roughering by means of sandpaper

non-absorbent
Glass, coated MDF, etc.

SA
self-adhesive design sheet
