OPACO-LINE
OL GENESIS White matt AR
Discontinued item
OPACO-LINE
Product characteristics
OL GENESIS White matt AR
Colour variants

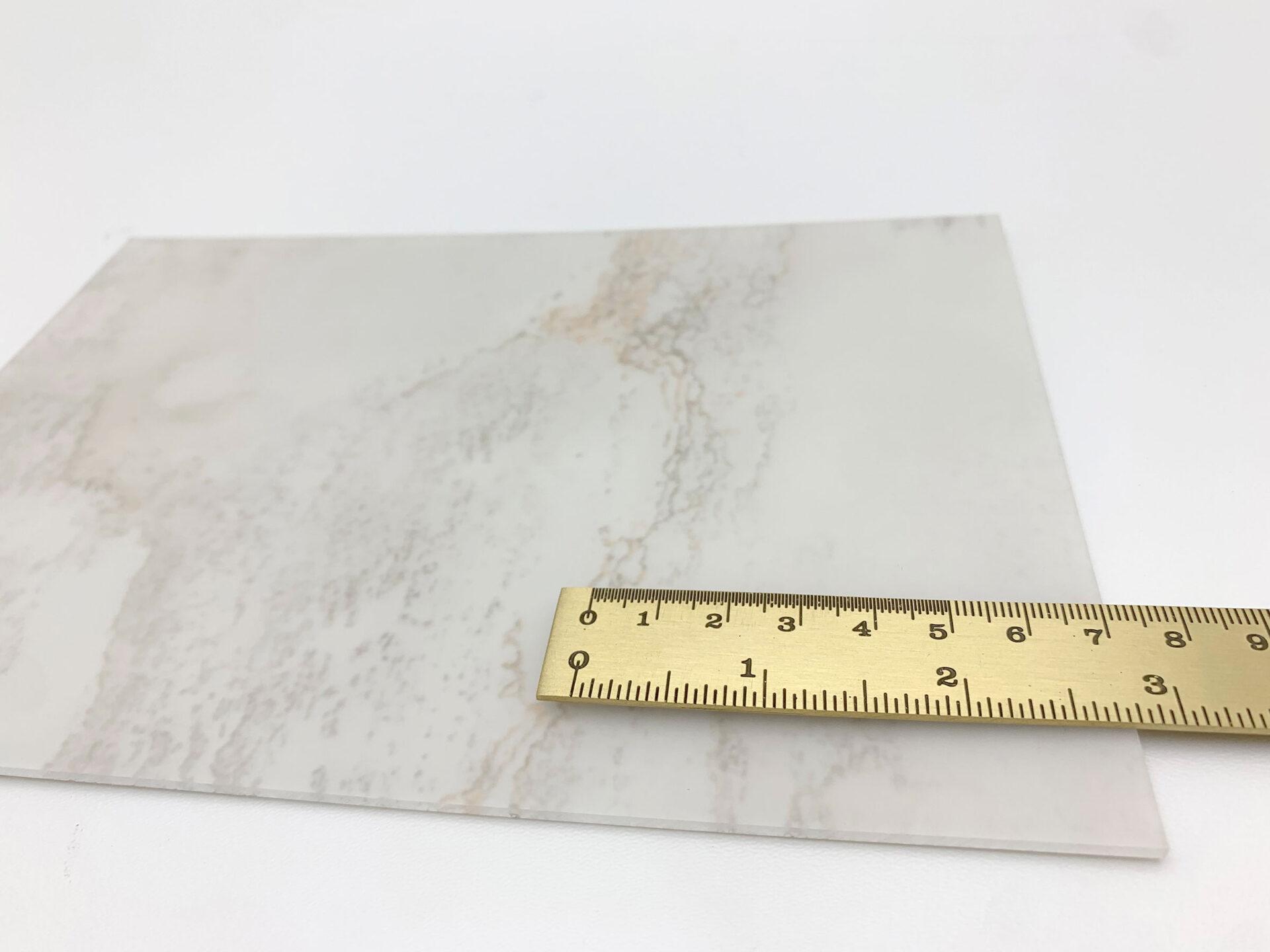

Panel photo
Product characteristics
Product characteristic
non adhesive (NA)
self adhesive (SA)
Item number
22626
22634
Format
2600x1000x2,3 mm
2600x1000x2,43 mm
Surface material
PET
PET
Base material
PS
PS
Back side material
Paper
Paper & glue
Material thickness mm
2,3 mm
2,43 mm
Max. relief height in mm
2,3 mm
2,43 mm
Temperature stability in °C
up to 50 °C
up to 50 °C
Wet room suitability
Abrasion Resistance
Rolled packable
Smallest bending radius
1000 mm
1000 mm
Weight in kg / piece
6,5
7,1
Pattern Gradient
Please consider the design course
Please consider the design course
Flammability
DIN 4102 - B2
DIN 4102 - B2
Machine-related dimensional and angle tolerances
+/- 2.0 mm in relation to 1,000 mm
+/- 2.0 mm in relation to 1,000 mm
Temperature-related dimensional deviations
+/- 0.7mm to 1,000 mm at temperatur change of 10°C
+/- 0.7mm to 1,000 mm at temperatur change of 10°C
Protection foil
GTIN-Code
9002582226268
9002582226343
Customs tariff number
39219060
39199080
Processing
Processing
non adhesive (NA)
self adhesive (SA)
Cutting
Punching
Drilling
Sawing
Yes supported by a panel
Yes supported by a panel
Milling
Yes supported by a panel
Yes supported by a panel
Laser cutting
Hot bending
PVA compressible
Digital printing
On request
On request
Screen printing
On request
On request
Extra equipment
Extra equipment
non adhesive (NA)
self adhesive (SA)
Special formats
On request
On request
Further thicknesses
Cuttings
Magnetic available
PVA treatment orderable
Special colors
Further variants
DECO-LINE, SIBUGLAS
DECO-LINE, SIBUGLAS
EN13501-1 Flammability orderable
ASTM E84 Flammability orderable
Accessories
Accessories
non adhesive (NA)
self adhesive (SA)
Glue recommendation
Putty adhesive with tooth spatule A2
not necessary
Matching Edges
Matching Profiles
Balance Sheet
PMMA White grained (Itemno. 25879) 2600x1010 mm
not necessary
Cleaning
Do not use abrasive cleaners, solvent cleaners or pure alcohol! In case of light dirt by means of soft cleaning cloth (it should be free of dust and free of dirt). In case of heavy dirt by means of standard plastic or window cleaner (spray cleaners not onto the material surface, but sparingly onto the cleaning cloth).
Processing guidelines
Please refer to the technical tables to see whether the respective processing is possible.
The interactive table is only available on the desktop. Please view this page on a desktop PC.
Product group
Base Material
Variation
Expansion joint
Processing
OPACO-LINE (OL)
absorbent
plasterboard, smoothed brickwork, raw MDF or chipboard etc.
NA
non-adhesive design sheet
Glutolin UK, Bostik Ardaflex® Multi (tooth spatula A2, B3)
putty adhesive
K1-Hybrid adhesive: Bostik H551 Supergrip Multi, Ramsauer 640
cartridge adhesive for strand bonding
PVA Glue Pressing
PVA pre-treatment is not necessary. Balancing sheets are avaliable at SIBU
non-absorbent
Glass, coated MDF, etc.
SA
self-adhesive design sheet
