LEATHER-LINE

LL LANE METALLIC USED Titan

Newcomer

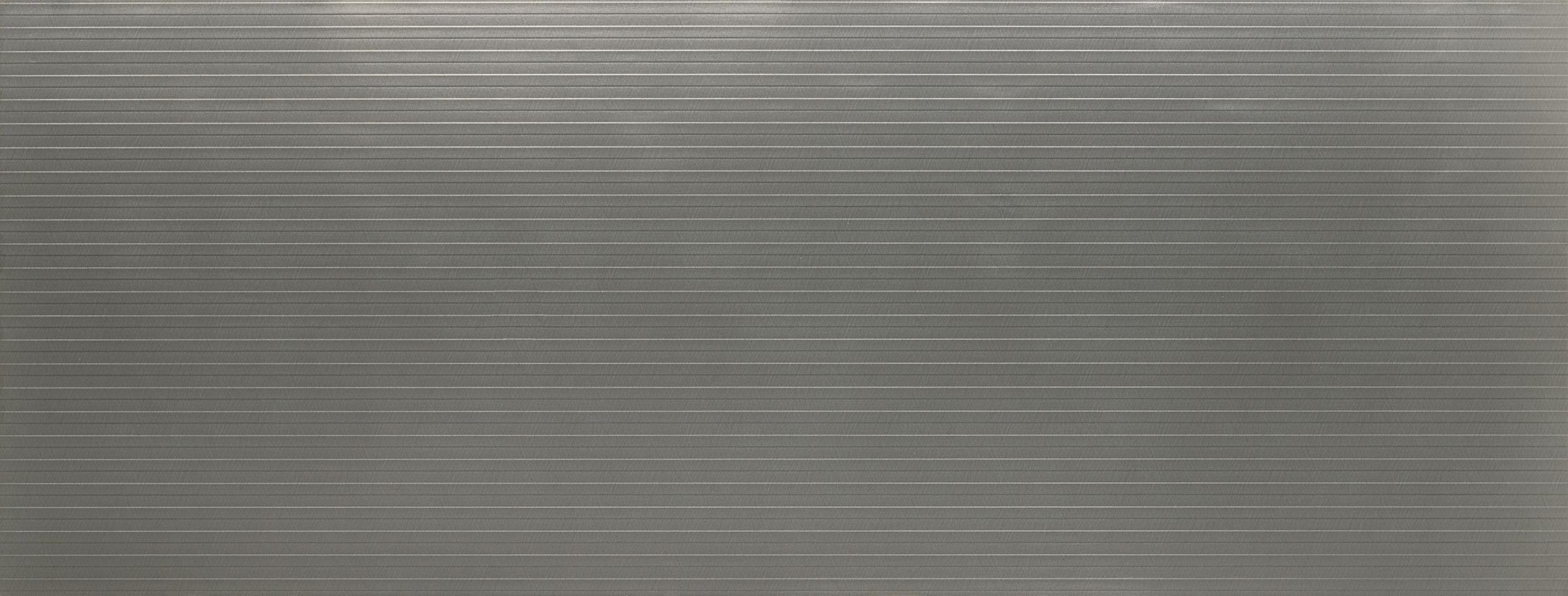

Full-plate image of a gray metallic design panel made of synthetic leather. The structure features vertical lines that are both recessed and raised.

LEATHER-LINE

Animal welfare is very important to us - which is why all LEATHER-LINE products are vegan. Starting with fine leather grains, through special decorative stitching techniques to exotic reptile decorations - you cannot tell the difference to real leather.

LANE COLLECTION Leather & Velvet [2 MB]

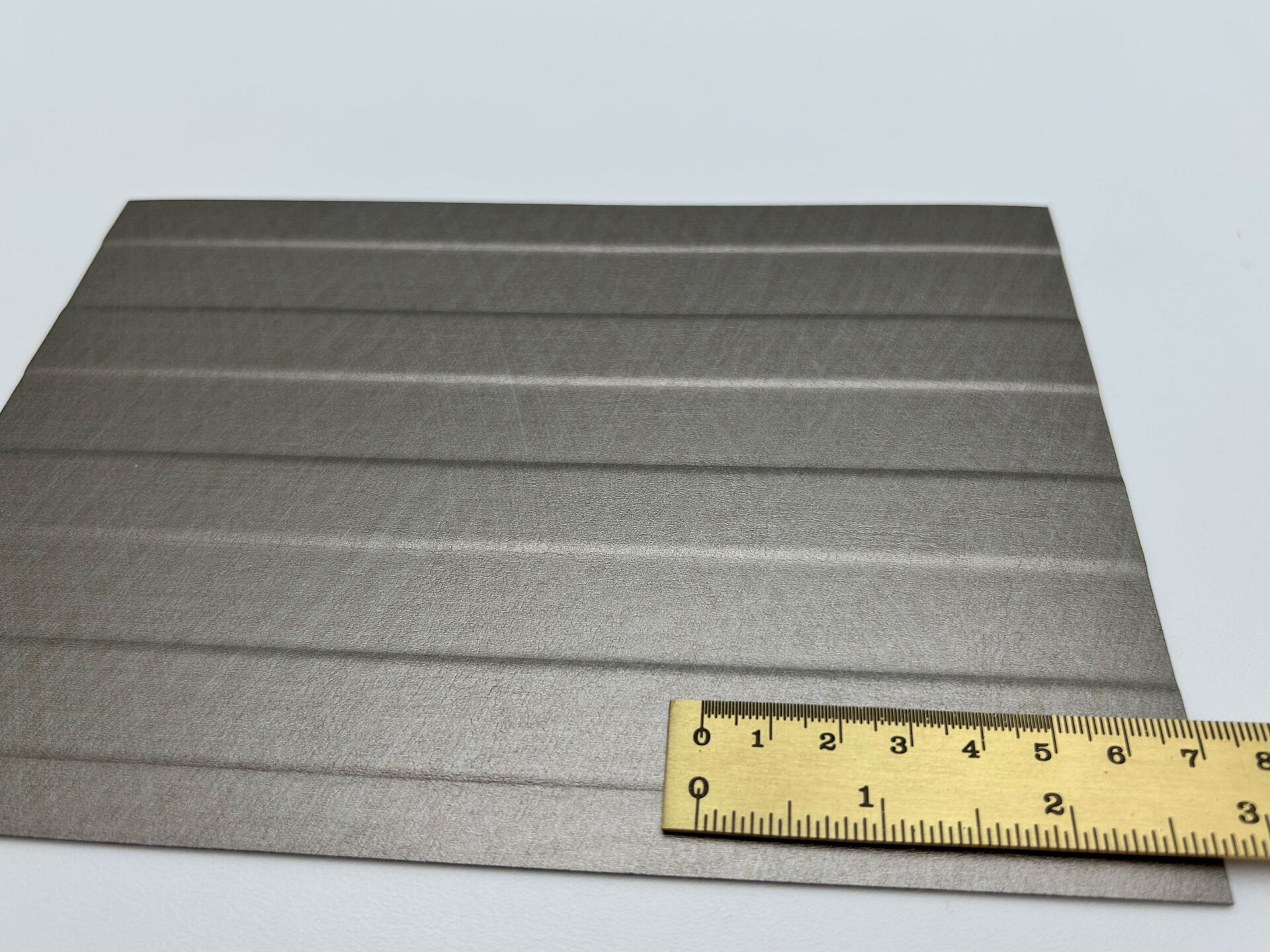

Detailed shot of a gray metallic design panel made of synthetic leather. The structure features vertical lines that are both recessed and raised.

Product characteristics
LL LANE METALLIC USED Titan

Colour variants

Detailed shot of a gray metallic design panel made of synthetic leather. The structure features vertical lines that are both recessed and raised.

LL LANE METALLIC USED Titan

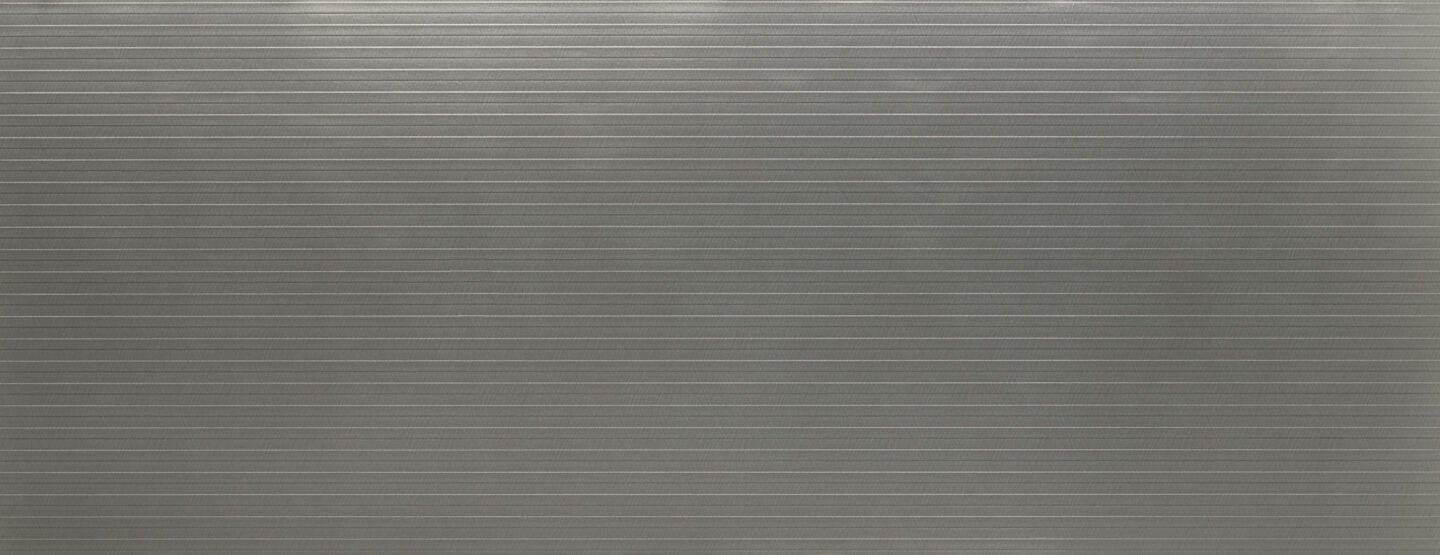

Panel photo

Product characteristics

Product characteristic

non adhesive (NA)

self adhesive (SA)

Item number

29276

29308

Format

2600x1000x1,3 mm

2600x1000x1,5 mm

Surface material

PU-Leather

PU-Leather

Base material

HIPS

HIPS

Back side material

Adhesive Layer

Material thickness mm

1,1 mm

1,3 mm

Max. relief height in mm

1,3 mm

1,5 mm

Temperature stability in °C

up to 50 °C

up to 50 °C

Wet room suitability

Rolled packable

Smallest bending radius

150 mm

150 mm

Weight in kg / piece

2

2,4

Pattern Gradient

Please consider the design course

Please consider the design course

Flammability

EN 13501-1 (E)

EN 13501-1 (E)

Machine-related dimensional and angle tolerances

+/- 2.0 mm in relation to 1,000 mm

+/- 2.0 mm in relation to 1,000 mm

Temperature-related dimensional deviations

+/- 0.7mm to 1,000 mm at temperatur change of 10°C

+/- 0.7mm to 1,000 mm at temperatur change of 10°C

Protection foil

GTIN-Code

9002582292768

9002582293086

Customs tariff number

39219060

39199080

Processing

Processing

non adhesive (NA)

self adhesive (SA)

Cutting

Punching

Drilling

Sawing

Milling

Laser cutting

Hot bending

PVA compressible

Digital printing

Screen printing

Extra equipment

Extra equipment

non adhesive (NA)

self adhesive (SA)

Special formats

Further thicknesses

Cuttings

Magnetic available

PVA treatment orderable

Special colors

On request

On request

EN13501-1 Flammability orderable

ASTM E84 Flammability orderable

Accessories

Accessories

non adhesive (NA)

self adhesive (SA)

Cleaning

Do not use abrasive cleaners, solvent cleaners or pure alcohol! Clean leather surfaces by means of standard liquid soap and then remove the soap with a humid cloth.

Detailed shot of a gray metallic design panel made of synthetic leather. The structure features vertical lines that are both recessed and raised.

Processing guidelines
Please refer to the technical tables to see whether the respective processing is possible.

The interactive table is only available on the desktop. Please view this page on a desktop PC.

Product group

Base Material

Variation

Expansion joint

Processing

LEATHER-LINE (LL)

absorbent
plasterboard, smoothed brickwork, raw MDF or chipboard etc.

NA
non-adhesive design sheet

No

PVA Glue Pressing
PVA pre-treatment is necessary. Balancing sheet and PVA pre-treatment are avaliable at SIBU or roughering by means of sandpaper

non-absorbent
Glass, coated MDF, etc.

SA
self-adhesive design sheet
