STRUCTURE-LINE

SL DIAMOND Anthracite AR

Newcomer

Product characteristics Processing
Shown is a photo of a complete design panel. The design features a diamond-like structure, with an anthracite color and a reflective surface.

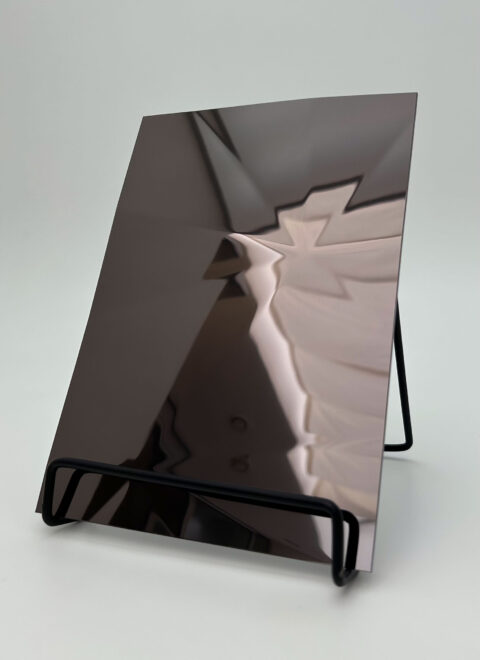

Dipslay stand with an anthracite reflective design panel whose structure is reminiscent of diamonds.

Product: SL DIAMOND Anthracite

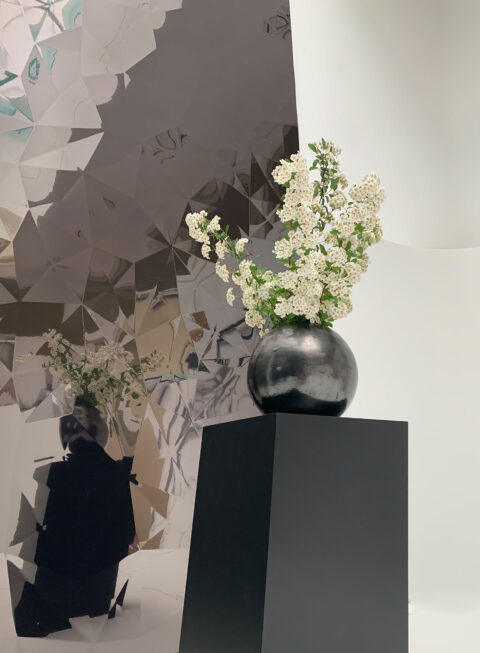

White flowers in a black round vase on a slanted black stool in front of a design panel with a diamond-like structure, anthracite colored and a shiny, reflective surface.

Product: SL DIAMOND Anthracite

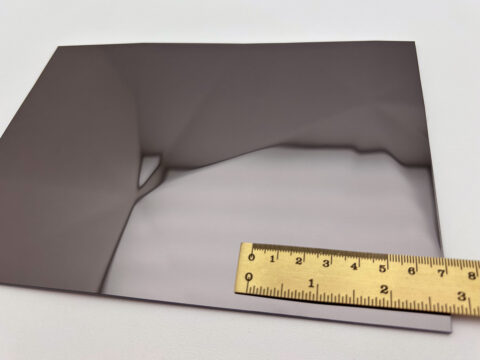

Detailed shot of the SL DIAMOND Anthracite design panel with a ruler

Product: SL DIAMOND Anthracite

STRUCTURE-LINE

More structure for furniture and walls: harmonious colours and unique designs of our STRUCTURE-LINE make every surface an eye-catcher and unleash threedimensional effects. Whether rattan, wood or concrete look - these design panels provide a special kind of visual and haptic experience.

SL DIAMOND – brushed & mirror [2 MB]

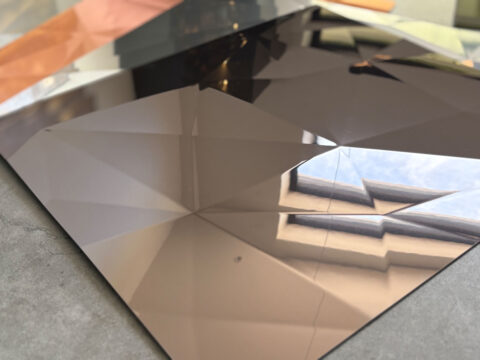

A close-up of a design panel, featuring a diamond-like structure. The color is anthracite, and the surface is glossy and reflective.

Product characteristics
SL DIAMOND Anthracite AR

Colour variants

A close-up of a design panel, featuring a diamond-like structure. The color is anthracite, and the surface is glossy and reflective.

SL DIAMOND Anthracite AR

Detailed shot of a design panel with a diamond-like structure, copper color, and a shiny, reflective surface.

SL DIAMOND Copper brushed AR
A close-up of a design panel, featuring a diamond-like structure. The color is gold, and the surface is glossy and reflective.

SL DIAMOND Gold
A close-up of a design panel, featuring a diamond-like structure. The color is steel-colored, and the surface is brushed.

SL DIAMOND Green Steel brushed AR
A close-up of a design panel, featuring a diamond-like structure. The color is silver, and the surface is glossy and reflective.

SL DIAMOND Silver

Panel photo

Shown is a photo of a complete design panel. The design features a diamond-like structure, with an anthracite color and a reflective surface.

Product characteristics

Product characteristic

non adhesive (NA)

self adhesive (SA)

Item number

30945

30946

Format

2600x1000x3,5 mm

2600x1000x3,8 mm

Surface material

PET

PET

Base material

HIPS

HIPS

Back side material

Adhesive Layer

Material thickness mm

2 mm

2,2 mm

Max. relief height in mm

3,5 mm

3,8 mm

Temperature stability in °C

up to 50 °C

up to 50 °C

Wet room suitability

Abrasion Resistance

Rolled packable

Smallest bending radius

1000 mm

1000 mm

Weight in kg / piece

5,6

6,2

Pattern Gradient

Please consider the design course

Please consider the design course

Flammability

EN 13501-1 (E)

EN 13501-1 (E)

Machine-related dimensional and angle tolerances

+/- 2.0 mm in relation to 1,000 mm

+/- 2.0 mm in relation to 1,000 mm

Temperature-related dimensional deviations

+/- 0.7mm to 1,000 mm at temperatur change of 10°C

+/- 0.7mm to 1,000 mm at temperatur change of 10°C

Protection foil

GTIN-Code

9002582309459

9002582309466

Customs tariff number

39219090

39199080

Processing

Processing

non adhesive (NA)

self adhesive (SA)

Cutting

Punching

Drilling

Sawing

Milling

Laser cutting

Hot bending

PVA compressible

Digital printing

Screen printing

Not possible

Not possible

Extra equipment

Extra equipment

non adhesive (NA)

self adhesive (SA)

Special formats

Further thicknesses

Cuttings

Magnetic available

PVA treatment orderable

Special colors

Further variants

DECO-LINE

DECO-LINE

EN13501-1 Flammability orderable

ASTM E84 Flammability orderable

Accessories

Accessories

non adhesive (NA)

self adhesive (SA)

Glue recommendation

Putty adhesive with toothed spatula B3 / MS polymer hybrid adhesives (cartouche)

not necessary

Matching Edges

Matching Profiles

Cleaning

Do not use abrasive cleaners, solvent cleaners or pure alcohol! In case of light dirt by means of soft cleaning cloth (it should be free of dust and free of dirt). In case of heavy dirt by means of standard plastic or window cleaner (spray cleaners not onto the material surface, but sparingly onto the cleaning cloth).

Additional Info

Due to the pattern, mechanical assembly (screws, spacers) is generally recommended. Applications in the ceiling area must be attached mechanically.

A close-up of a design panel, featuring a diamond-like structure. The color is anthracite, and the surface is glossy and reflective.

Processing guidelines
Please refer to the technical tables to see whether the respective processing is possible.

The interactive table is only available on the desktop. Please view this page on a desktop PC.

Shown is a photo of a complete design panel. The design features a diamond-like structure, with an anthracite color and a reflective surface.

Product: SL DIAMOND Anthracite AR

Product group

Base Material

Variation

Expansion joint

Processing

STRUCTURE-LINE (SL)

absorbent
plasterboard, smoothed brickwork, raw MDF or chipboard etc.

NA
non-adhesive design sheet

Yes

Glutolin UK, Bostik Ardaflex® Multi (tooth spatula A2, B3)
putty adhesive

No

PVA Glue Pressing
PVA pre-treatment is necessary. Balancing sheet and PVA pre-treatment are avaliable at SIBU or roughering by means of sandpaper

non-absorbent
Glass, coated MDF, etc.

SA
self-adhesive design sheet

Yes

Bond self-adhesive decor panels

A close-up of a design panel, featuring a diamond-like structure. The color is anthracite, and the surface is glossy and reflective.
