STRUCTURE-LINE

SL FACET Copper brushed matt AR

Newcomer

Product characteristics Processing
Full-plate image of a design panel whose structure is reminiscent of a hammer blow, the color is copper and the surface is brushed.

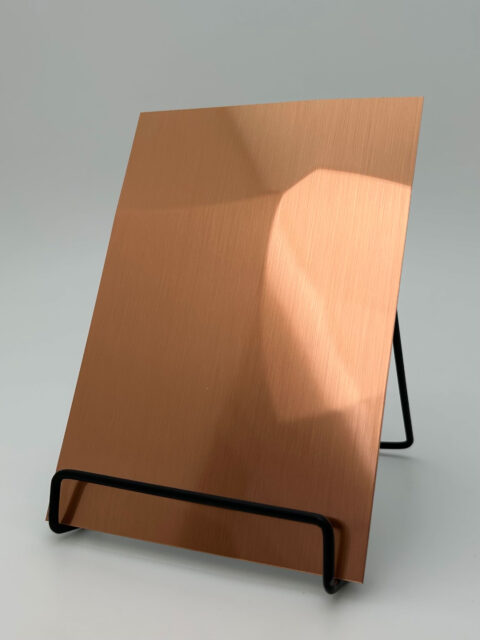

Dipslay stand with a copper brushed design panel whose structure is reminiscent of hammer blows.

Product: SL FACVET Copper brushed
Preview image for picture in progress!

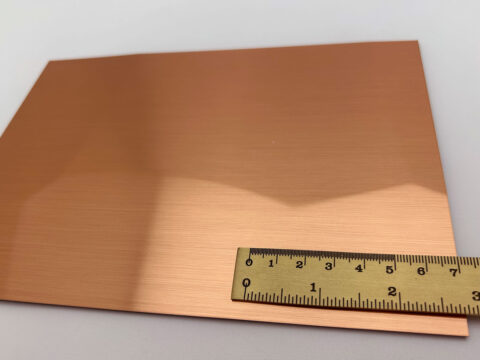

Detailed shot of the SL FACET Copper brushed design panel with a ruler

Product: SL FACET Copper brushed

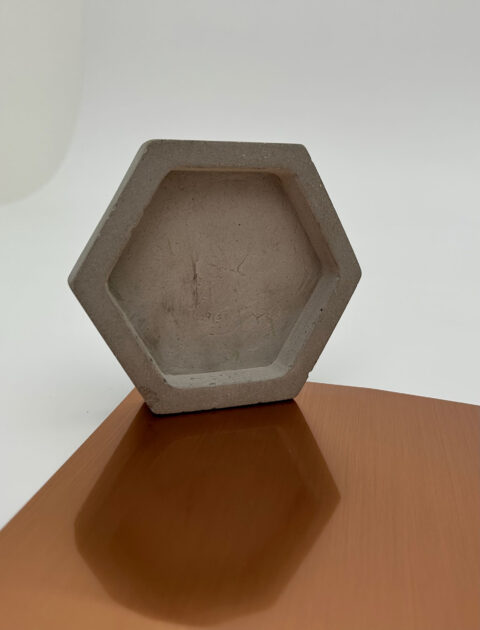

Brushed decor - SL FACET Copper brushed - with concrete honeycomb

Product: SL FACET Copper brushed

STRUCTURE-LINE

More structure for furniture and walls: harmonious colours and unique designs of our STRUCTURE-LINE make every surface an eye-catcher and unleash threedimensional effects. Whether rattan, wood or concrete look - these design panels provide a special kind of visual and haptic experience.

SL FACET – brushed & mirror [428 KB]

Detailed shot of a design panel with a diamond-like structure, copper color, and brushed surface.

Product characteristics
SL FACET Copper brushed matt AR

Colour variants

Detailed shot of a design panel with a diamond-like structure, copper color, and brushed surface.

SL FACET Copper brushed matt AR

Detailed shot of a design panel with a structure reminiscent of a hammer blow, the color is copper and the surface is shiny and reflective.

SL FACET Anthracite AR
Detailed shot of a design panel whose structure is reminiscent of a hammer blow, the color is Silver Green Metallic and the surface is brushed.

SL FACET Green Steel brushed AR
Detailed shot of a design panel whose structure is reminiscent of a hammer blow, the color is red-brownish and the surface is shiny and reflective.

SL FACET Red Brown AR
Detailed shot of a design panel with a structure reminiscent of a hammer blow, the color is silver and the surface is glossy and reflective.

SL FACET Silver

Panel photo

Full-plate image of a design panel whose structure is reminiscent of a hammer blow, the color is copper and the surface is brushed.

Product characteristics

Product characteristic

non adhesive (NA)

self adhesive (SA)

Item number

30963

30967

Format

2600x100x3,5 mm

2600x1000x3,8 mm

Surface material

PET

PET

Base material

HIPS

HIPS

Back side material

Adhesive Layer

Material thickness mm

2 mm

2,3 mm

Max. relief height in mm

3,5 mm

3,8 mm

Temperature stability in °C

up to 50 °C

up to 50 °C

Wet room suitability

Abrasion Resistance

Rolled packable

Smallest bending radius

1000 mm

1000 mm

Weight in kg / piece

5,6

6,2

Pattern Gradient

Please consider the design course

Please consider the design course

Flammability

EN 13501-1 (E)

EN 13501-1 (E)

Machine-related dimensional and angle tolerances

+/- 2.0 mm in relation to 1,000 mm

+/- 2.0 mm in relation to 1,000 mm

Temperature-related dimensional deviations

+/- 0.7mm to 1,000 mm at temperatur change of 10°C

+/- 0.7mm to 1,000 mm at temperatur change of 10°C

Protection foil

GTIN-Code

9002582309633

9002582309671

Customs tariff number

39219090

39199080

Processing

Processing

non adhesive (NA)

self adhesive (SA)

Cutting

Punching

Drilling

Sawing

Milling

Laser cutting

Hot bending

PVA compressible

conditionally possible

Digital printing

On request

On request

Screen printing

Extra equipment

Extra equipment

non adhesive (NA)

self adhesive (SA)

Special formats

Further thicknesses

Cuttings

Magnetic available

PVA treatment orderable

Special colors

Further variants

DECO-LINE

DECO-LINE

EN13501-1 Flammability orderable

ASTM E84 Flammability orderable

Accessories

Accessories

non adhesive (NA)

self adhesive (SA)

Glue recommendation

Putty adhesive with toothed spatula B3 / MS polymer hybrid adhesives (cartouche)

not necessary

Matching Edges

Matching Profiles

Cleaning

Do not use abrasive cleaners, solvent cleaners or pure alcohol! In case of light dirt by means of soft cleaning cloth (it should be free of dust and free of dirt). In case of heavy dirt by means of standard plastic or window cleaner (spray cleaners not onto the material surface, but sparingly onto the cleaning cloth).

Additional Info

Due to the pattern, mechanical assembly (screws, spacers) is generally recommended. Applications in the ceiling area must be attached mechanically.

Detailed shot of a design panel with a diamond-like structure, copper color, and brushed surface.

Processing
SL FACET Copper brushed matt AR

Processing information

Due to the pattern, mechanical assembly (screws, spacers) is generally recommended. Applications in the ceiling area must be attached mechanically.
