STRUCTURE-LINE

SL OCEAN Rainbow

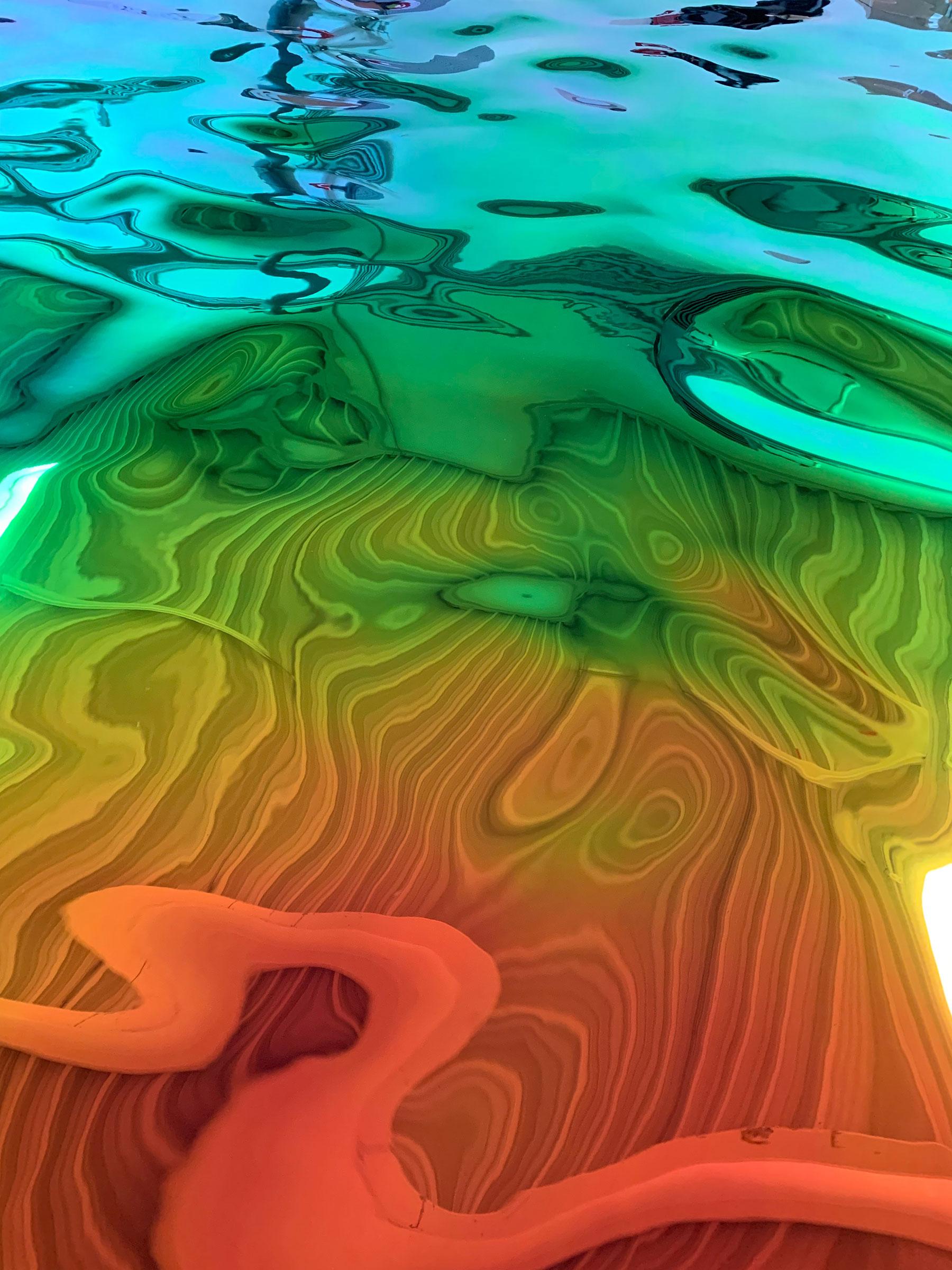

Full plate photo of a glossy orange green decor with texture

STRUCTURE-LINE

More structure for furniture and walls: harmonious colours and unique designs of our STRUCTURE-LINE make every surface an eye-catcher and unleash threedimensional effects. Whether rattan, wood or concrete look - these design panels provide a special kind of visual and haptic experience.
Full plate photo of a glossy orange green decor with texture

Product characteristics
SL OCEAN Rainbow

Product characteristics

Product characteristic

non adhesive (NA)

self adhesive (SA)

Item number

27679

27743

Format

2600x1000x8 mm

2600x1000x8,24 mm

Surface material

PET

PET

Base material

HIPS

HIPS

Back side material

Adhesive Layer

Material thickness mm

2 mm

2,24 mm

Max. relief height in mm

8 mm

8,24 mm

Temperature stability in °C

up to 50 °C

up to 50 °C

Wet room suitability

Abrasion Resistance

Rolled packable

Smallest bending radius

1000 mm

1000 mm

Weight in kg / piece

5,6

6,2

Pattern Gradient

No design course

No design course

Flammability

DIN 4102 - B2

DIN 4102 - B2

Machine-related dimensional and angle tolerances

+/- 2.0 mm in relation to 1,000 mm

+/- 2.0 mm in relation to 1,000 mm

Temperature-related dimensional deviations

+/- 0.7mm to 1,000 mm at temperatur change of 10°C

+/- 0.7mm to 1,000 mm at temperatur change of 10°C

Protection foil

GTIN-Code

9002582276799

9002582277437

Customs tariff number

39219090

39199080

Processing

Processing

non adhesive (NA)

self adhesive (SA)

Cutting

Punching

Drilling

Sawing

Milling

Laser cutting

Hot bending

PVA compressible

Digital printing

Screen printing

Not possible

Not possible

Extra equipment

Extra equipment

non adhesive (NA)

self adhesive (SA)

Special formats

Further thicknesses

Cuttings

Magnetic available

PVA treatment orderable

Special colors

Further variants

DECO-LINE

DECO-LINE

EN13501-1 Flammability orderable

ASTM E84 Flammability orderable

Accessories

Accessories

non adhesive (NA)

self adhesive (SA)

Glue recommendation

MS polymer hybrid adhesives (cartouche)

not necessary

Matching Edges

Matching Profiles

Cleaning

Do not use abrasive cleaners, solvent cleaners or pure alcohol! In case of light dirt by means of soft cleaning cloth (it should be free of dust and free of dirt). In case of heavy dirt by means of standard plastic or window cleaner (spray cleaners not onto the material surface, but sparingly onto the cleaning cloth).

Additional Info

Due to the pattern, mechanical assembly (screws, spacers) is generally recommended. Applications in the ceiling area must be attached mechanically.

Full plate photo of a glossy orange green decor with texture

Processing
SL OCEAN Rainbow

Processing information SL OCEAN

Due to the pattern, mechanical assembly (screws, spacers) is generally recommended. Applications in the ceiling area must be attached mechanically.

Downloads

Processing information SL OCEAN [185 KB]
